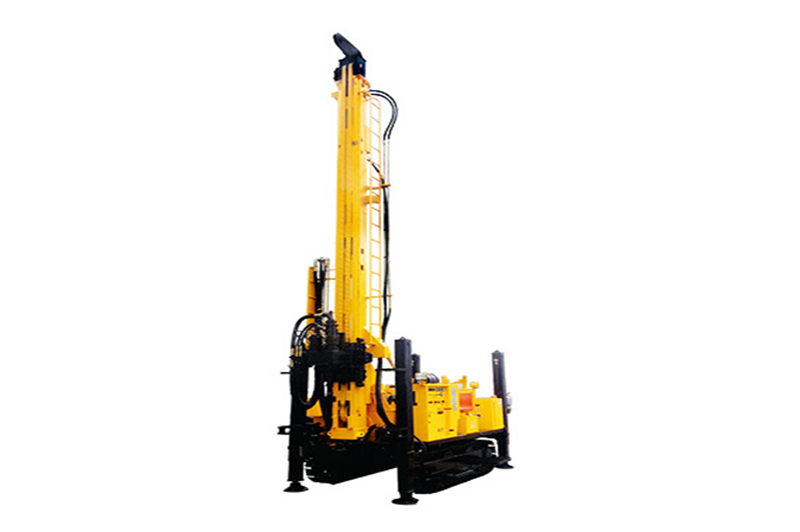

JKS600B Crawler Mounted Versatile Well Drilling Rig

New, efficient, and versatile

Rated Drilling Depth

600m

Site Condition

It is mainly applicable to the drilling process of wells, monitor boreholes, dewatering boreholes, relief boreholes and gas layers and other exploitation projects.

Inquire Now None

PRODUCT DESCRIPTION

Product Features

JKS600B crawler mounted versatile well drilling rig is a new, efficient and multifunctional drill rig, mainly applicable to the drilling process of wells, monitor boreholes, dewatering boreholes, relief boreholes and gas layers and other exploitation projects. When drilling in the rock layer, the rig adopts DTH percussive hammer for penetration and compressed air for cleaning, the penetration speed being dozens of times quicker than conventional rotation rigs. In loose rock, the rig employs a cutting bit or cone bit and uses mud to clean the dirt, its versatility suiting for all kinds of complex geological conditions. Its versatility makes the rig suitable to various kinds of rigs.

Rated Drilling Depth	600m
Borehole Diameter	140~450mm
Engine Power	132kW
Max Lifting Force	30T
Lifting Force of Small Winch	1.5T
Lifting Force of Main Winch	4T(optional)
Rotation Torque	14000N.m
Rotation Rate	0～40/80rpm
Feeding Stroke	5200mm
Lifting Rate	0～18m/min
Height of Centralizer	0.9m
Grade Ability	15°
Hydraulic Generator (optional)	24kW/380V
Flow of Foam Pump (optional)	20L/min
Flow of Centrifugal Mud Pump (optional)	1500L/min
Dimension (L x W x H)	8.1m x 2.25m x 3.0m
Working Size (W x H)	3.19m x 9.2m
Weight	14.1T
